■ Outline dimension

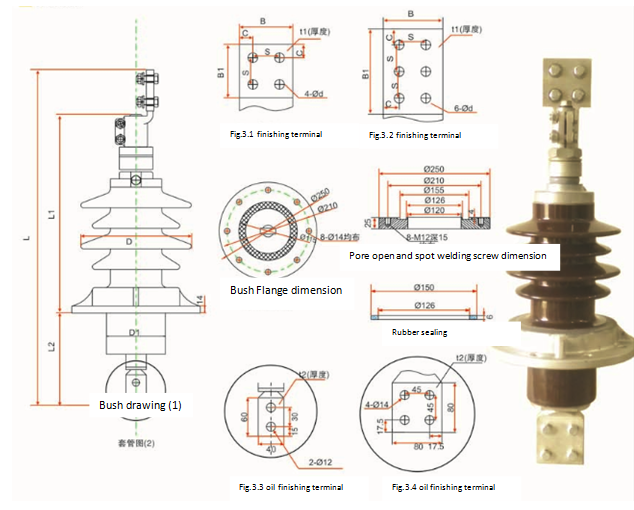

■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Finishing terminal (MM) |
Oil Finishing terminal (MM) |
No of Sheds |
Creep age Distance (mm) |
|||||||||
|
L |
L1(±10) |
L2 |
D |
D1 |
Fig. |
t |
Fig. |
H |
h |
d |
d1 |
||||
|
WTFTG.2050 |
BFW-24/50A-4 |
640 |
460 |
100 |
205 |
115 |
Fig.3.1 |
10 |
Fig.3.3 |
30 |
15 |
15 |
10 |
Bigx4, smallx3 |
744 |
|
WTFTG.2051 |
BFW-24/100A-4 |
640 |
460 |
100 |
205 |
115 |
Fig.3.1 |
10 |
Fig.3.3 |
30 |
20 |
20 |
15 |
Bigx4, smallx3 |
744 |
|
WTFTG.2052 |
BFW-24/250A-4 |
640 |
460 |
100 |
205 |
115 |
Fig.3.1 |
10 |
Fig.3.3 |
30 |
20 |
20 |
15 |
Bigx4, smallx3 |
744 |
|
WTFTG.2053 |
BFW-24/315A-4 |
640 |
480 |
100 |
205 |
115 |
Fig.3.2 |
12 |
Fig.3.3 |
30 |
20 |
25 |
18 |
Bigx4, smallx3 |
744 |
|
WTFTG.2054 |
BFW-24/630A-4 |
640 |
480 |
100 |
205 |
115 |
Fig.3.2 |
12 |
Fig.3.3 |
45 |
35 |
35 |
28 |
Bigx4, smallx3 |
744 |
