■ Outline dimension

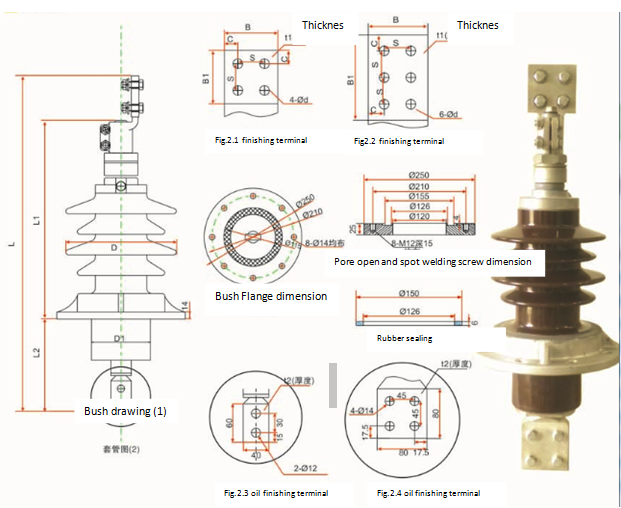

■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Oil Finishing terminal (MM) |
Finishing terminal (MM) |
No of Sheds |
Creep age Distance (mm) |
|||||||||||
|
L |
L1(±10) |
L2 |
D |
D1 |
Fig. |
t2 |
Fig. |
B |
B1 |
S |
C |
Φd |
t1 |
||||
|
WTFTG.1058 |
BFW-12/630A-4 |
620 |
360 |
180 |
215 |
115 |
Fig.2.3 |
15 |
Fig.2.3 |
63 |
63 |
30 |
16.5 |
14 |
12 |
Bigx2, smallx2 |
380 |
|
WTFTG.1059 |
BFW-12/1250A-4 |
655 |
360 |
180 |
215 |
115 |
Fig.2.3 |
15 |
Fig.2.3 |
100 |
100 |
50 |
25 |
18 |
12 |
Bigx2, smallx2 |
380 |
|
WTFTG.1060 |
BFW-12/2000A-4 |
765 |
430 |
210 |
215 |
115 |
Fig.2.4 |
20 |
Fig.2.4 |
125 |
125 |
60 |
32.5 |
18 |
20 |
Bigx2, smallx2 |
380 |
|
WTFTG.1061 |
BFW-12/3150A-4 |
765 |
430 |
210 |
215 |
115 |
Fig.2.4 |
20 |
Fig.2.4 |
125 |
125 |
60 |
32.5 |
18 |
20 |
Bigx2, smallx2 |
380 |
|
WTFTG.1062 |
BFW-12/4000A-4 |
800 |
430 |
210 |
215 |
115 |
Fig.2.4 |
20 |
Fig.2.4 |
112 |
112 |
50 |
30 |
18 |
20 |
Bigx2, smallx2 |
380 |
