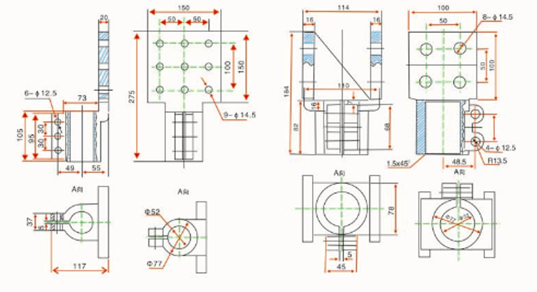

■ Outline dimension
■ Technical parameters and outline dimension
|
Code |
Rated current A |
Dimensions (mm) |
Weight Kg |
||||||||
|
H |
h1 |
h2 |
t |
ϕD |
Md |
d |
B |
B1 |
||||
|
WT.0300.1 |
300 |
98 |
41 |
19 |
8 |
24 |
12x1.75 |
11 |
50 |
25 |
0.6 |
|
|
WT.0400.2 |
400 |
110 |
44 |
19 |
8 |
28 |
16x2 |
11 |
60 |
30 |
0.6 |
|
|
WT.0600.3 |
600 |
110 |
44 |
19 |
10 |
32 |
20x2.5 |
11 |
60 |
30 |
0.45 |
|
|
WT.0800.4 |
800 |
148 |
58 |
30 |
12 |
36 |
24x1.5 |
14.5 |
80 |
40 |
1.1 |
|
|
WT.1000.5 |
1000 |
148 |
58 |
30 |
12 |
41 |
Φ27 |
14.5 |
80 |
40 |
1.2 |
|
|
WT.1200.6 |
1200 |
148 |
58 |
30 |
12 |
44 |
Φ30 |
14.5 |
80 |
40 |
1.3 |
|
|
WT.1600.7 |
1600 |
180 |
75 |
35 |
16 |
53 |
Φ33 |
14.5 |
100 |
50 |
2.7 |
|
|
WT.2000.8 |
2000 |
180 |
75 |
35 |
16 |
58 |
Φ38 |
14.5 |
100 |
50 |
2.5 |
|
|
WT.3150.9 |
3150 |
180 |
75 |
35 |
16 |
62 |
Φ42 |
14.5 |
100 |
50 |
2.9 |
|
|
WT.4000.10 |
4000 |
215 |
85 |
40 |
20 |
77 |
Φ52 |
17.5 |
120 |
60 |
4.5 |
|
