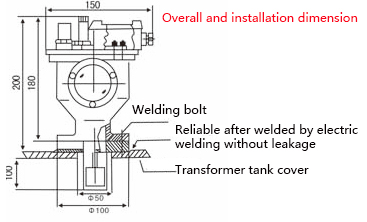

QJ2-40 is a changed product of QJ1-40 gas relay. The buoy gets into the oil tank of the transformer, and it gives alarm when the oil lever is lower than the regulated level of the transformer tank. If the oil level is lower than another regulated level, the transformer is cut from operating.
Main technical parameters
Pipe diameter: 40mm
Contact capacity: DC/AC 220V 0.3A
Dielectric strength between open contacts: 2000V 1min
Seal test pressure: 245kpa 20min
Operating characters (seen in the table)
|
Type |
Alarm signal |
Trip signal |
Oil tank opening dimension |
|
QJ1-40 |
170ml±10% |
270ml±10% |
50mm |
|
QJ2-40 |
15mm±2.5mm under the cover |
30mm±2.5mm under the cover |
50mm |
|
QJ3-40 |
15mm±2.5mm under the cover |
30mm±2.5mm under the cover |
50mm |
