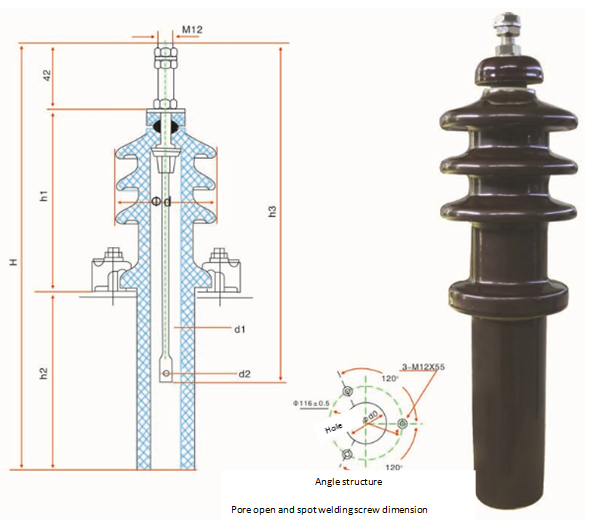

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
Creep age Distance (mm) |
|||||||
|
H |
h1 |
h2 |
h3 |
Φ d |
d0 |
d1 |
d2 |
||||
|
WT.0315.10.1 |
BJD-10/315 |
313 |
217 |
54 |
285 |
115 |
70 |
6 |
7 |
3 Single Umbrellas |
270 |
|
WT.0315.10.2 |
BJD-10/315 |
353 |
217 |
94 |
285 |
115 |
70 |
6 |
7 |
3 Single Umbrellas |
270 |
|
WT.0315.10.3 |
BJD-10/315 |
403 |
217 |
144 |
285 |
115 |
70 |
6 |
7 |
3 Single Umbrellas |
270 |
|
WT.0315.10.4 |
BJD-10/315 |
453 |
217 |
194 |
285 |
115 |
70 |
6 |
7 |
3 Single Umbrellas |
270 |
|
WT.0315.20.1 |
BJD-20/315 |
373 |
277 |
54 |
345 |
115 |
70 |
6 |
7 |
4 Single Umbrellas |
380 |
|
WT.0315.20.2 |
BJD-20/315 |
413 |
277 |
94 |
345 |
115 |
70 |
6 |
7 |
4 Single Umbrellas |
380 |
|
WT.0315.20.3 |
BJD-20/315 |
463 |
277 |
144 |
345 |
115 |
70 |
6 |
7 |
4 Single Umbrellas |
380 |
|
WT.0315.20.4 |
BJD-20/315 |
513 |
277 |
194 |
345 |
115 |
70 |
6 |
7 |
4 Single Umbrellas |
380 |
