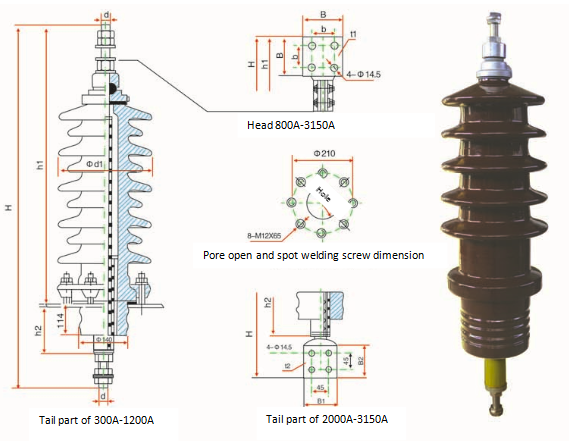

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
No of Sheds |
Creep age Distance (mm) |
Weight Kg |
||||||||||
|
H |
h1 |
h2 |
d |
d1 |
B |
b |
B1 |
B2 |
t1 |
t2 |
||||||
|
WT.0300.35 |
BJ-35/300 |
760 |
514 |
217 |
M12 |
210 |
|
|
|
|
|
|
Single Umbrella |
5 |
650 |
17 |
|
WT.0400.35 |
BJ-35/400 |
782 |
529 |
220 |
M16 |
210 |
|
|
|
|
|
|
Single Umbrella |
5 |
650 |
18 |
|
WT.0600.35 |
BJ-35/600 |
800 |
540 |
223 |
M20 |
210 |
|
|
|
|
|
|
Single Umbrella |
5 |
650 |
19 |
|
WT.0800.35 |
BJ-35/800 |
909 |
649 |
224 |
M24 |
210 |
80 |
40 |
|
|
12 |
|
Single Umbrella |
5 |
650 |
21 |
|
WT.1000.35 |
BJ-35/1000 |
916 |
653 |
224 |
M30 |
210 |
80 |
40 |
|
|
12 |
|
Single Umbrella |
5 |
650 |
24 |
|
WT.1200.35 |
BJ-35/1200 |
926 |
656 |
224 |
M33 |
210 |
80 |
40 |
|
|
12 |
|
Single Umbrella |
5 |
650 |
26 |
|
WT.2000.35 |
BJ-35/2000 |
1015 |
693 |
210 |
Φ42 |
210 |
100 |
50 |
80 |
85 |
16 |
14 |
Single Umbrella |
5 |
650 |
32 |
|
WT.3150.35 |
BJ-35/3150 |
1015 |
693 |
210 |
Φ48 |
210 |
100 |
50 |
80 |
85 |
16 |
16 |
Single Umbrella |
5 |
650 |
35 |
|
WT.0300.35.W |
BJW-35/300 |
760 |
514 |
217 |
M12 |
225 |
|
|
|
|
|
|
Big and small umbrellas |
10 |
650 |
25 |
|
WT.0400.35.W |
BJW-35/400 |
782 |
529 |
220 |
M16 |
225 |
|
|
|
|
|
|
Big and small umbrellas |
10 |
650 |
26 |
|
WT.0600.35.W |
BJW-35/600 |
800 |
540 |
223 |
M20 |
225 |
|
|
|
|
|
|
Big and small umbrellas |
10 |
650 |
27 |
|
WT.0800.35.W |
BJW-35/800 |
909 |
649 |
224 |
M24 |
225 |
80 |
40 |
|
|
12 |
|
Big and small umbrellas |
10 |
650 |
29 |
|
WT.1000.35.W |
BJW-35/1000 |
916 |
653 |
224 |
M30 |
225 |
80 |
40 |
|
|
12 |
|
Big and small umbrellas |
10 |
650 |
32 |
|
WT.1200.35.W |
BJW-35/1200 |
926 |
656 |
224 |
M33 |
225 |
80 |
40 |
|
|
12 |
|
Big and small umbrellas |
10 |
650 |
34 |
|
WT.2000.35.W |
BJW-35/2000 |
1015 |
693 |
210 |
Φ42 |
225 |
100 |
50 |
80 |
85 |
16 |
14 |
Big and small umbrellas |
10 |
650 |
41 |
|
WT.3150.35.W |
BJW-35/3150 |
1015 |
693 |
210 |
Φ48 |
225 |
100 |
50 |
80 |
85 |
16 |
16 |
Big and small umbrellas |
10 |
650 |
45 |
